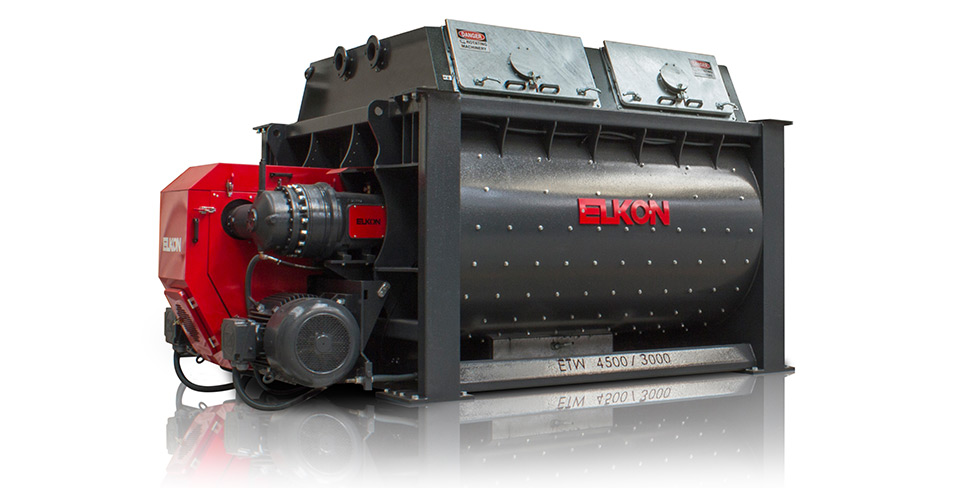

Twinshaft Mixers

• The capacities of the Elkon Twin-Shaft Mixers are 1500/1000 l, 3000/2000 l, 4500/3000 l, 6000/4000 l, and 6750/4500 l.
• They are widely used for producing ready mix concrete and heavy density concrete ( For Example It’s used for construction of dams etc. ).
• Elkon Twin-Shaft Mixers can be manufactured with double discharge gates in the capacities of 3000/2000 l . and 4500/3000 l.
• With It’s compact structure and advanced technology, Elkon Twin-Shaft Mixers can work with between 0-150 mm aggregates.•The mixer is consist of two horizontal shafts and coupled engine-gear box group.
• To produce concrete with better quality scrapers at the end points which stand at specific angles to each other work simultaneously.
• Also Elkon Twin-Shaft Mixers are equipped with manual pump for emergency opening of unloading door of power failure
• Mixer body welded steel construction.Inner bottom linings and inner lateral linings are cast steel wear resistant Mn alloyed, replaceable.
• Mixing arms screwed on shafts.
• Mixing blades are Mn alloyed wear resistant cast steel
• Scraper blades are Mn alloyed wear resistant cast steel
• Lubrication system for mixing shafts’ seals with electrical grease pump (automatic greasing system).
• The members of mixing reduction gears and the mixing axles bearings are greased in oil bath in the carter in a lasting way.
• Cover with two inspection doors in accordance with the accident prevention and safety regulations (mixer stops while inspection door opening).
• Inspection step complete with access ladder

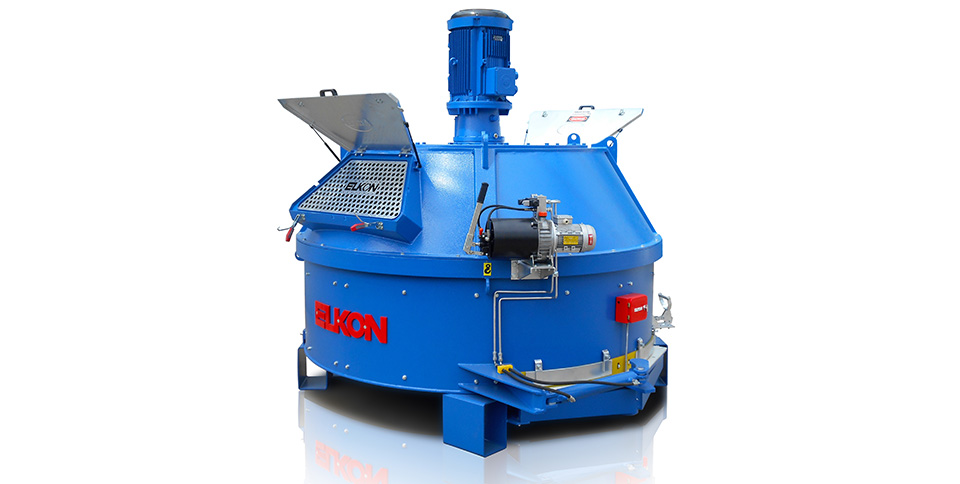

Planetary Mixers

• The capacities of Elkon Planetary Mixers are 375/250 l., 750/500 l., 1500/1000l. and 3000/2000l.
• Elkon Planetary Mixers are widely used especially for producing concrete pipes, paver stone, prefabric elements or special concrete units those require low slump concrete.
• Elkon Planetary Mixers can be manufactured with double discharge gates in the capacities of 1500/1000 l . and 3000/2000 l.
• The big diameter of the mixer and thin layer of concrete mixture provide optimum homogeneity and with It’s big discharge gate radius
• It’s possible to catch the most effective discharging.
• Elkon uses star type technology like the earth and the solar system. The mixer arms rotate and at the same time the mixers stars which are connected to mixer arms rotate around their axis too.
• The rotation speed of the mixer stars change according to the size of the mixer from 36 to 48 cycle/minute.

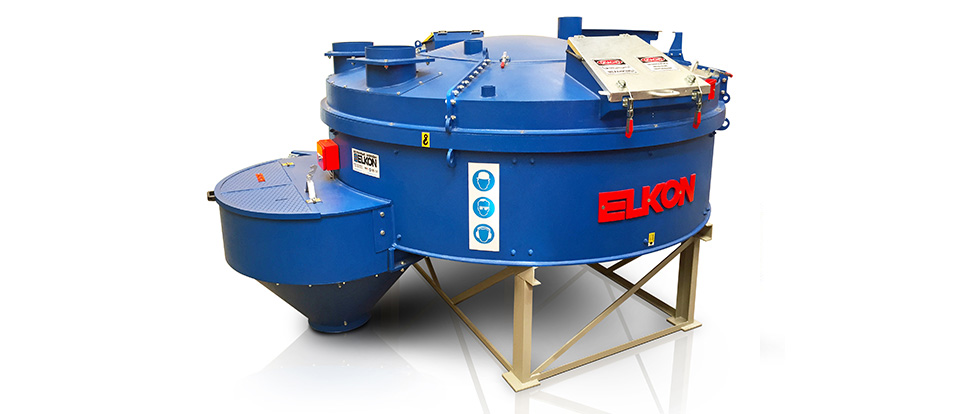

Malaxeurs Turbo ELKON

Elkon Pan Type Mixers are widely used for a long time especially in ready mix concrete business. • The capacities of Elkon Pan Mixers are 375/250 l. , 750/500 l. , 1500/1000 l. and 3000/2000 l.
• Elkon Pan Type Mixers can be manufactured with double discharge gates in the capacities of 1500/1000 l. and 3000/2000 l.
• Elkon Pan Type Mixers which can be equipped with “Automatic Washing System (Optional)“ according to customer’s demand,
• Elkon Pan Type Mixers give user the possibility to gain high quality-concrete mix from maximum 40mm aggregates in 30 seconds
• Mixing paddles of the mixer are equipped with special springs to prevent the mixer being damaged in case of a big sized material comes in to the mixer.
• Mixer body is welded steel construction.
• Linings (bottom and lateral) of pan mixer are special wear resistant 3990 Mn alloyed ST-52, replaceable linings.
• Rotor is equipped with mixing arms which have security mechanism with springs.
• Wide mixer cleaning and maintenance gate with dust sealing.
• Mixer has maintenance gates and observing gate on it.
• There is a security system (for preventing accidents) which stops operation when maintenance gates will be opened.
